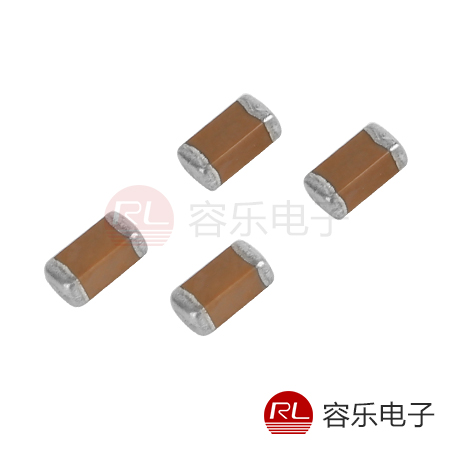

貼片電容 0402 X5R 470NF K 6.3V

型號：0402 474K 6.3V X5R ；介質材料：陶瓷(瓷介) ；應用范圍：濾波 ；外形：長方形 ；功率特性：中功率 ；頻率特性：中頻 ；調節方式：固定 ；引線類型：無引線 ；耐壓值：(V) ；等效串聯電阻(ESR)：10(mΩ) ；損耗：0.7%.

　　1.容量: 0.1pf-100000000PF 1UF-1000NF-1000000PF;

　　2.三位數的容量數值表示法:比如104最后一位的數字4代表前面兩位數10后有4個0,104-100000PF 470-47PF 225=2200000PF 107-100000000PF;

　　3.誤差: +0.1PF(B擋) +0.25PF(C)擋+0.5PF(捎) +1%(F)擋+5%( J)擋+10%( K)擋+ 20% ( M)擋+80%20%( Z擋)B C,D級誤差適用于容量s10pF的產品;

　　4.電壓: 4V 6.3V 10V 16V 25V 50V 63V 100V 200V 250V 400V 500V 630V 1000V 2000V 3000V 5000V;

　　5.品牌:TDK.

貼片電容 0402 X5R 470NF K 6.3V

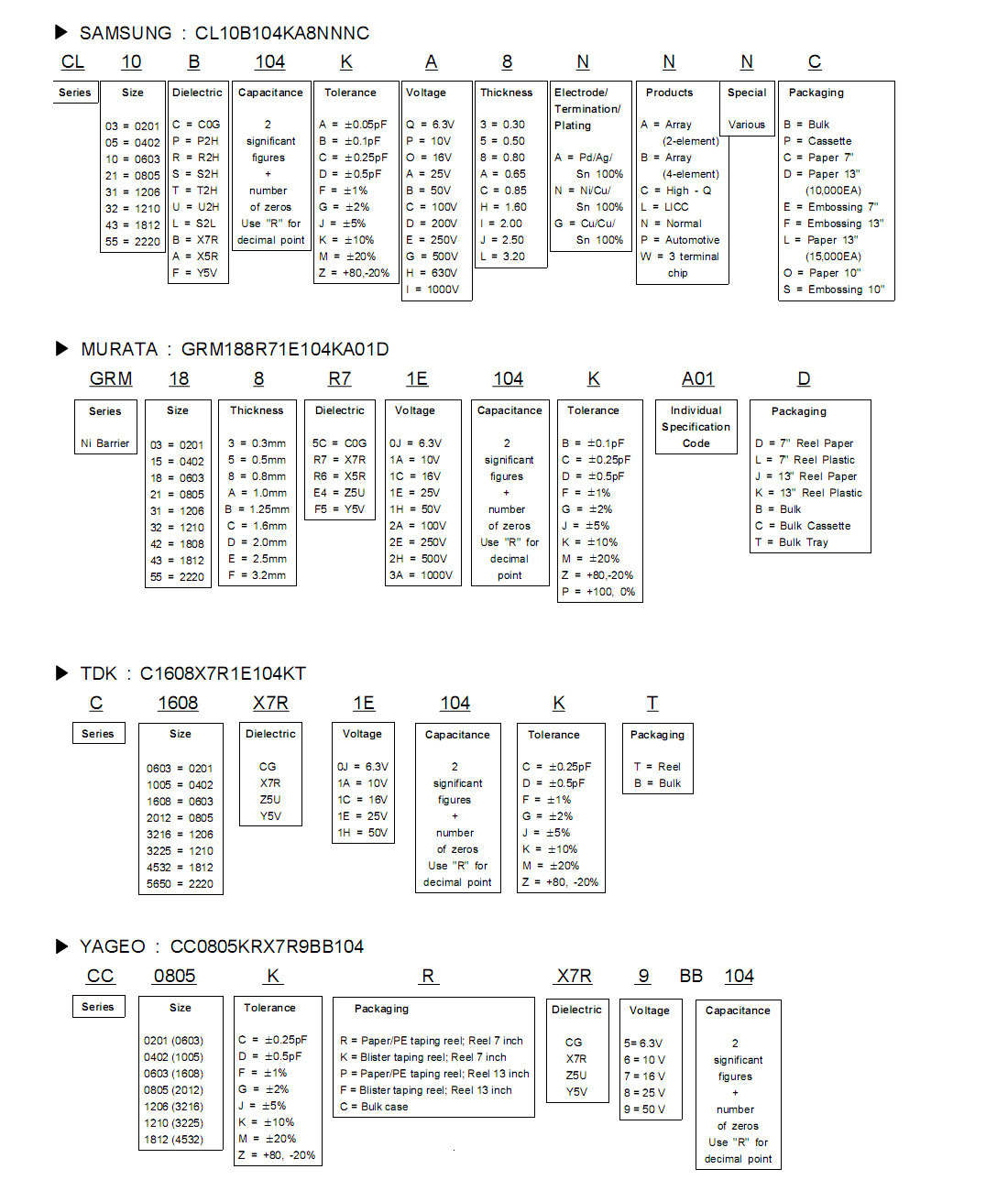

三星貼片電容型號 三星貼片電容空值 電容尺寸 電容精度 材質 額定電壓 電容厚度
CL05CR75CB5NNNC 0.75pF 402 ±0.25pF COG 50V 0.50 mm
CL05C010CB5NNNC 1pF 402 ±0.25pF COG 50V 0.50 mm
CL05C1R2CB5NNNC 1.2pF 402 ±0.25pF COG 50V 0.50 mm
CL05C1R5CB5NNNC 1.5pF 402 ±0.25pF COG 50V 0.50 mm
CL05C1R8CB5NNNC 1.8pF 402 ±0.25pF COG 50V 0.50 mm
CL05C020CB5NNNC 2pF 402 ±0.25pF COG 50V 0.50 mm
CL05C2R2CB5NNNC 2.2pF 402 ±0.25pF COG 50V 0.50 mm
CL05C2R4CB5NNNC 2.4pF 402 ±0.25pF COG 50V 0.50 mm
CL05C2R5CB5NNNC 2.5pF 402 ±0.25pF COG 50V 0.50 mm
CL05C2R7CB5NNNC 2.7pF 402 ±0.25pF COG 50V 0.50 mm
CL05C030CB5NNNC 3pF 402 ±0.25pF COG 50V 0.50 mm
CL05C3R3CB5NNNC 3.3pF 402 ±0.25pF COG 50V 0.50 mm
CL05C3R5CB5NNNC 3.5pF 402 ±0.25pF COG 50V 0.50 mm
CL05C3R6CB5NNNC 3.6pF 402 ±0.25pF COG 50V 0.50 mm
CL05C3R9CB5NNNC 3.9pF 402 ±0.25pF COG 50V 0.50 mm
